Our cord stopper range covers common hoodie and outerwear closures as well as technical bag and outdoor hardware: double-hole round cord locks, flat double-hole locks, single-hole cord locks, mushroom cord locks, pig-nose locks, button locks, round bead locks and special assembled drawcord stoppers. The large image boards are shown first, followed by the attribute table and FAQ, so your team can review styles faster.
Most styles are available in POM / acetal, nylon or ABS, with hole diameters shown on the image sheets. OEM color matching, custom mold development and cord + stopper assembly support are available for bulk orders.
Double-hole round & flat cord lock families
These boards group the most common double-hole stopper constructions used for hoodies, jackets, waist cords and bag drawcords. The styles include compact round bodies, elongated flat bodies and pig-nose / mushroom variants.

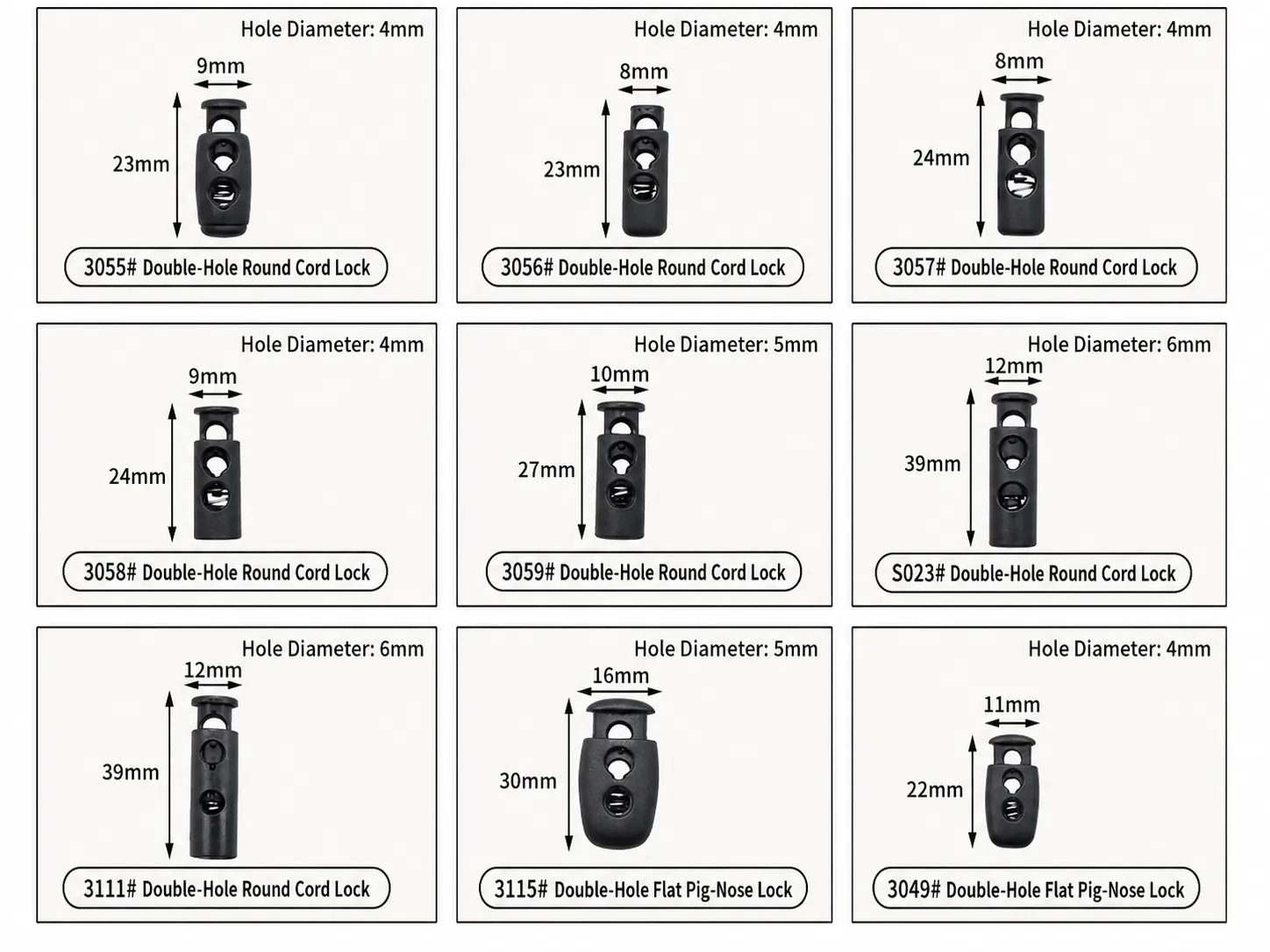

Double-hole round and flat starter range
Core range board covering models 3055, 3056, 3057, 3058, 3059, S023, 3111, 3115 and 3049. Good reference for 4–6 mm drawcord programs and standard garment stopper sourcing.

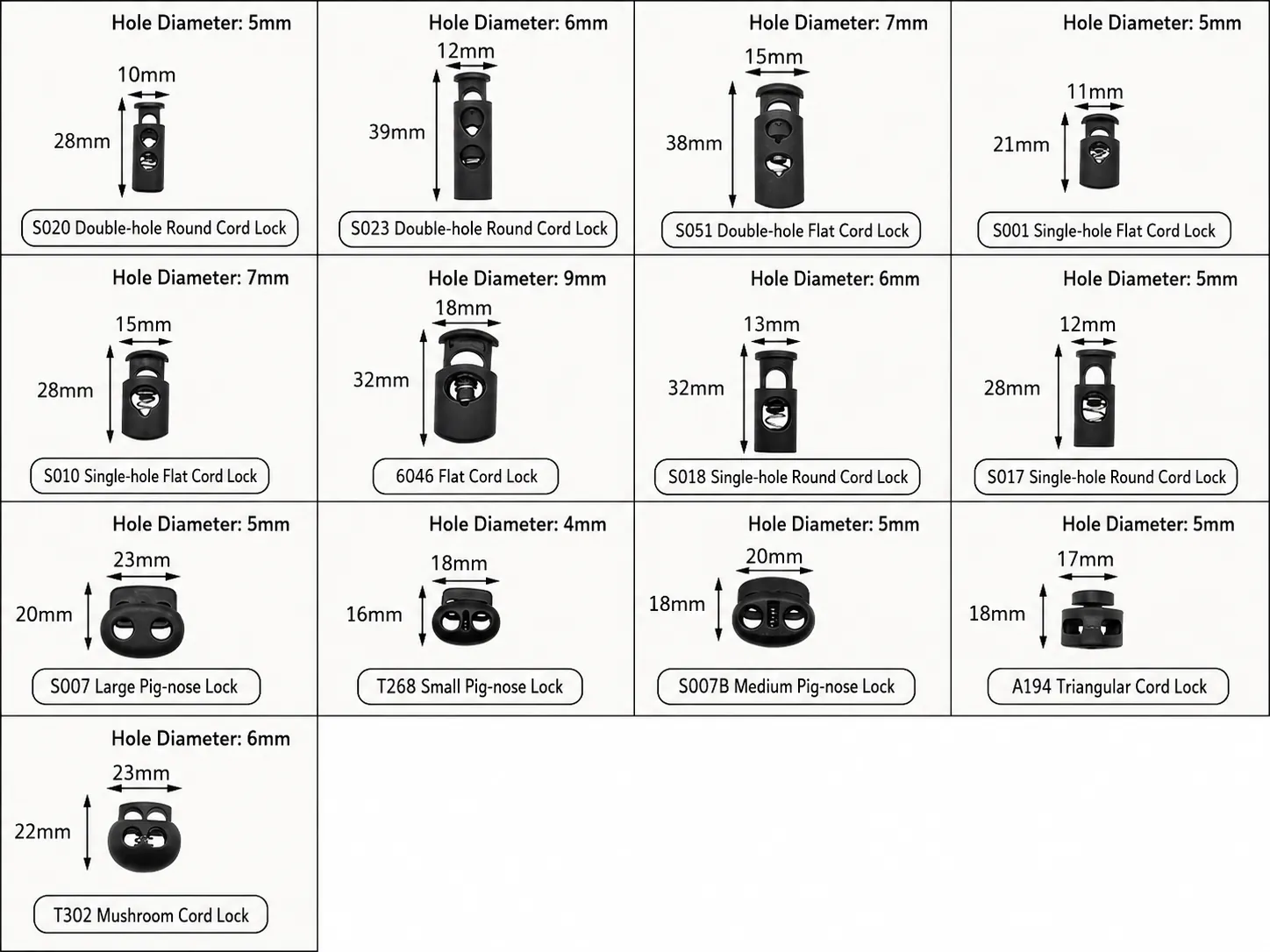

Extended round, pig-nose and single-hole assortment
Mixed board with round and pig-nose bodies including S020, S023, S051, S001, S010, 6046, S018, S017, S007, T268, S007B, A194 and T302. Useful when comparing medium and large outerwear stopper shapes.

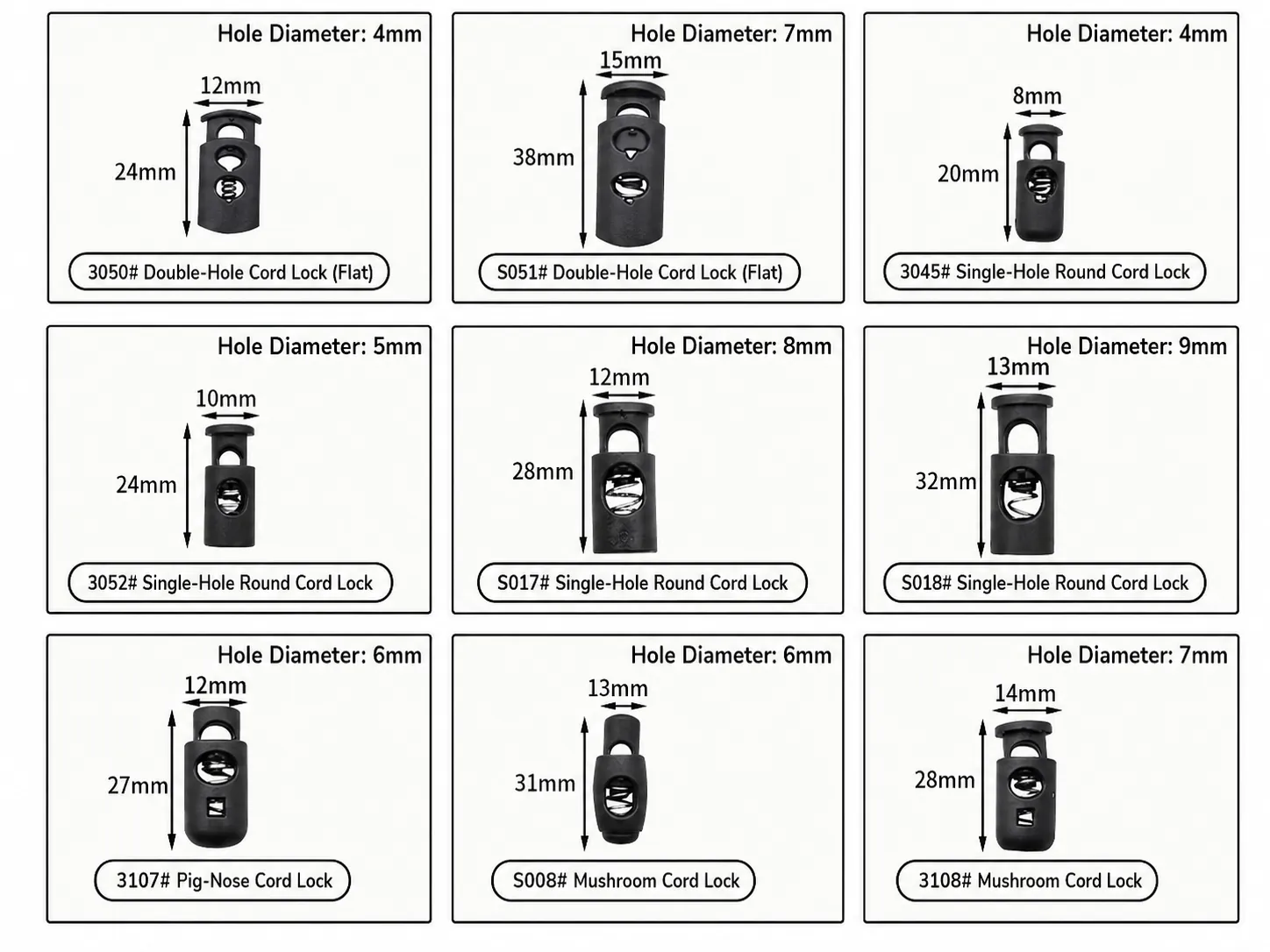

Round-body models with single-hole options
Board featuring 3050, S051, 3045, 3052, S017, S018, 3107, S008 and 3108 — a useful sheet for comparing double-hole flat bodies against single-hole round cord lock structures.
Single-hole, thick and reinforced cord locks
This group focuses on larger single-hole and reinforced locks suitable for thicker cords, backpacks and technical apparel.

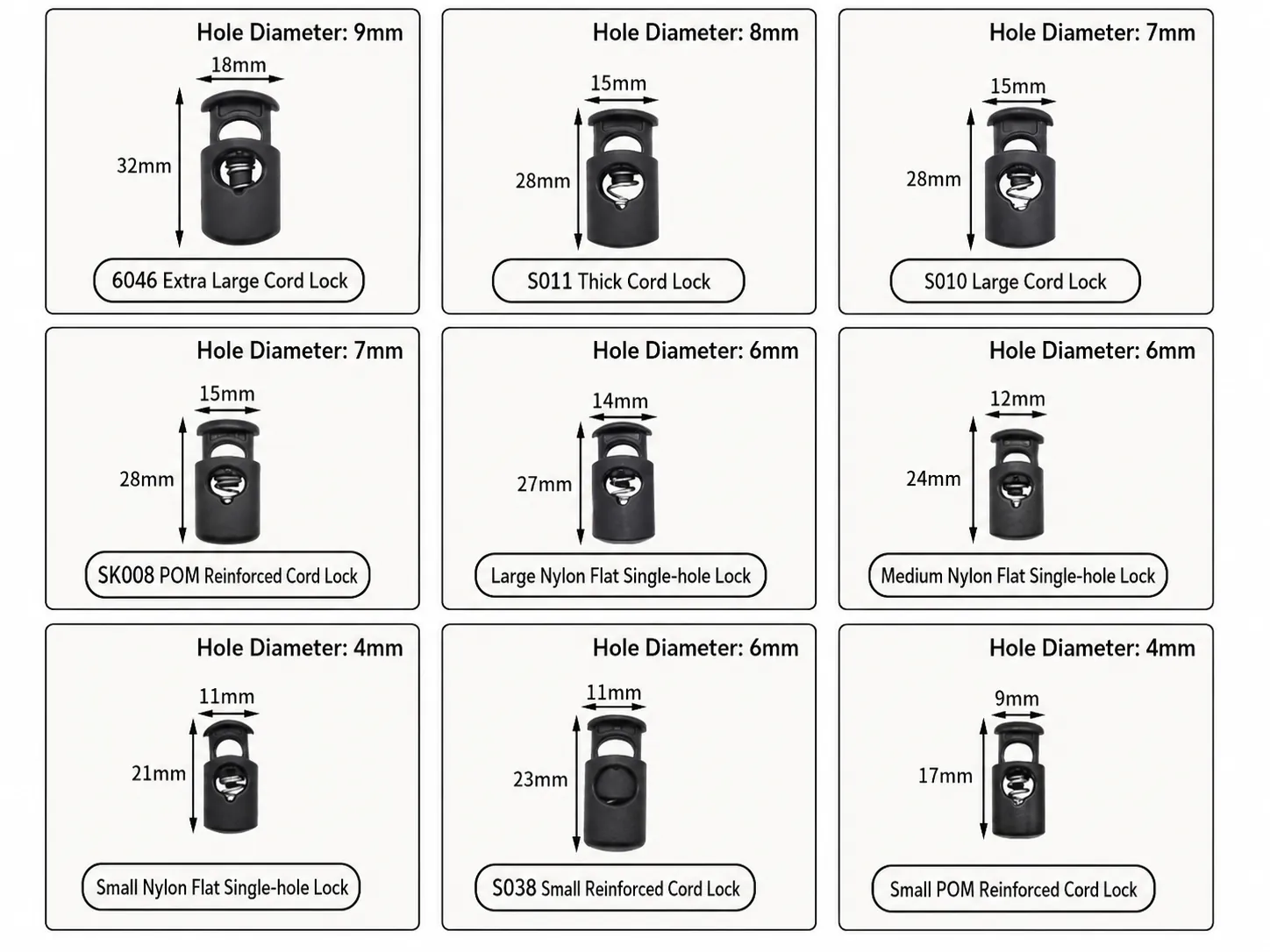

Large single-hole and reinforced stopper series
Includes 6046 Extra Large Cord Lock, S011 Thick Cord Lock, S010 Large Cord Lock, SK008 POM Reinforced Cord Lock, plus large/medium/small flat single-hole lock options and S038 Small Reinforced Cord Lock.
Specialty locks, beads, buckles & button-lock constructions
When the project needs a less common shape, cord bead, integrated buckle form or button-style lock, these boards cover the broader engineering range.

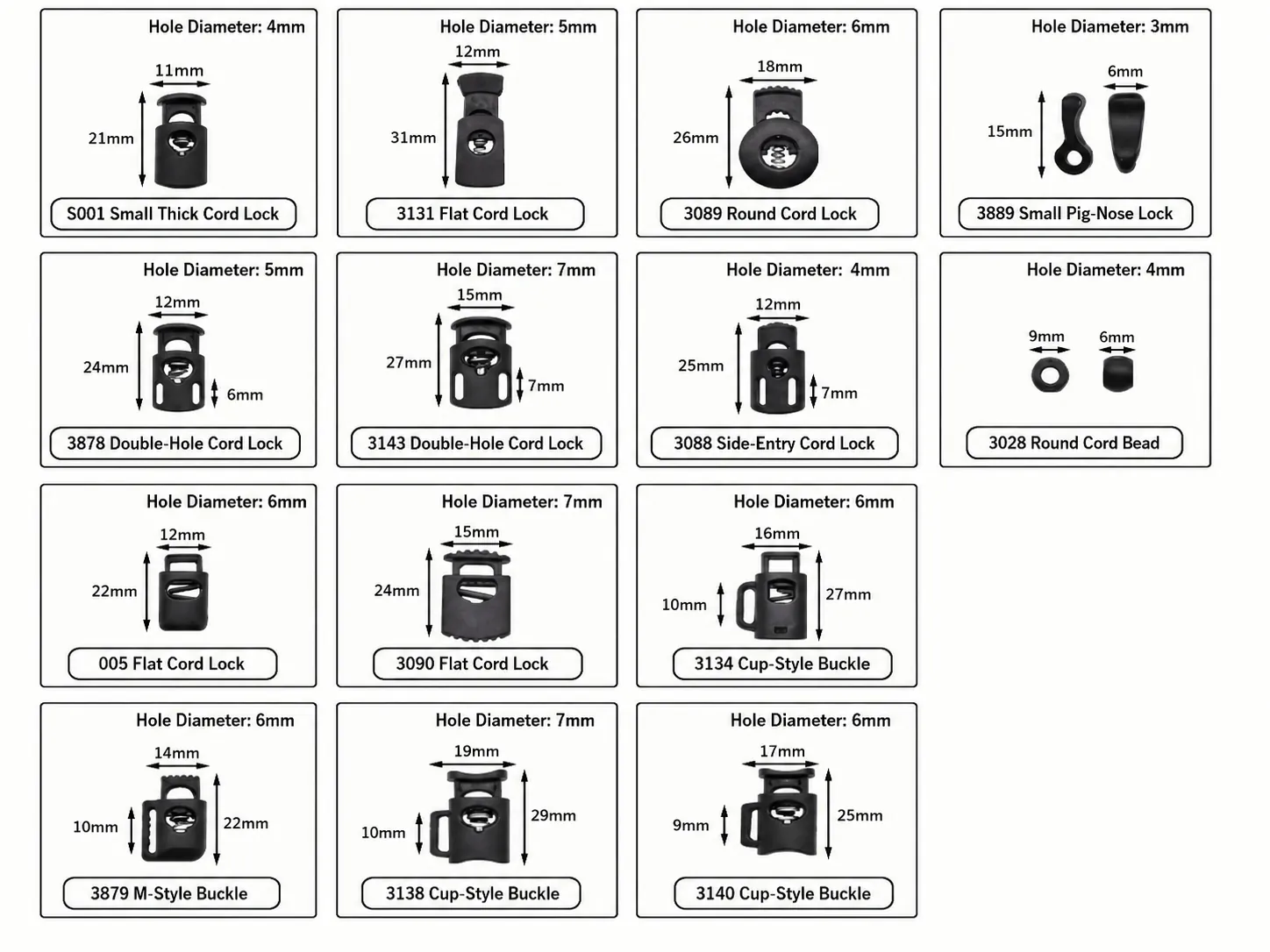

Specialty locks, cord beads and cup-style buckles
Board covering S001 Small Thick Cord Lock, 3131 Flat Cord Lock, 3089 Round Cord Lock, 3889 Small Pig-Nose Lock, 3878 / 3143 / 3088 stopper variants, 3028 Round Cord Bead and cup-style buckle structures such as 3134, 3138 and 3140.

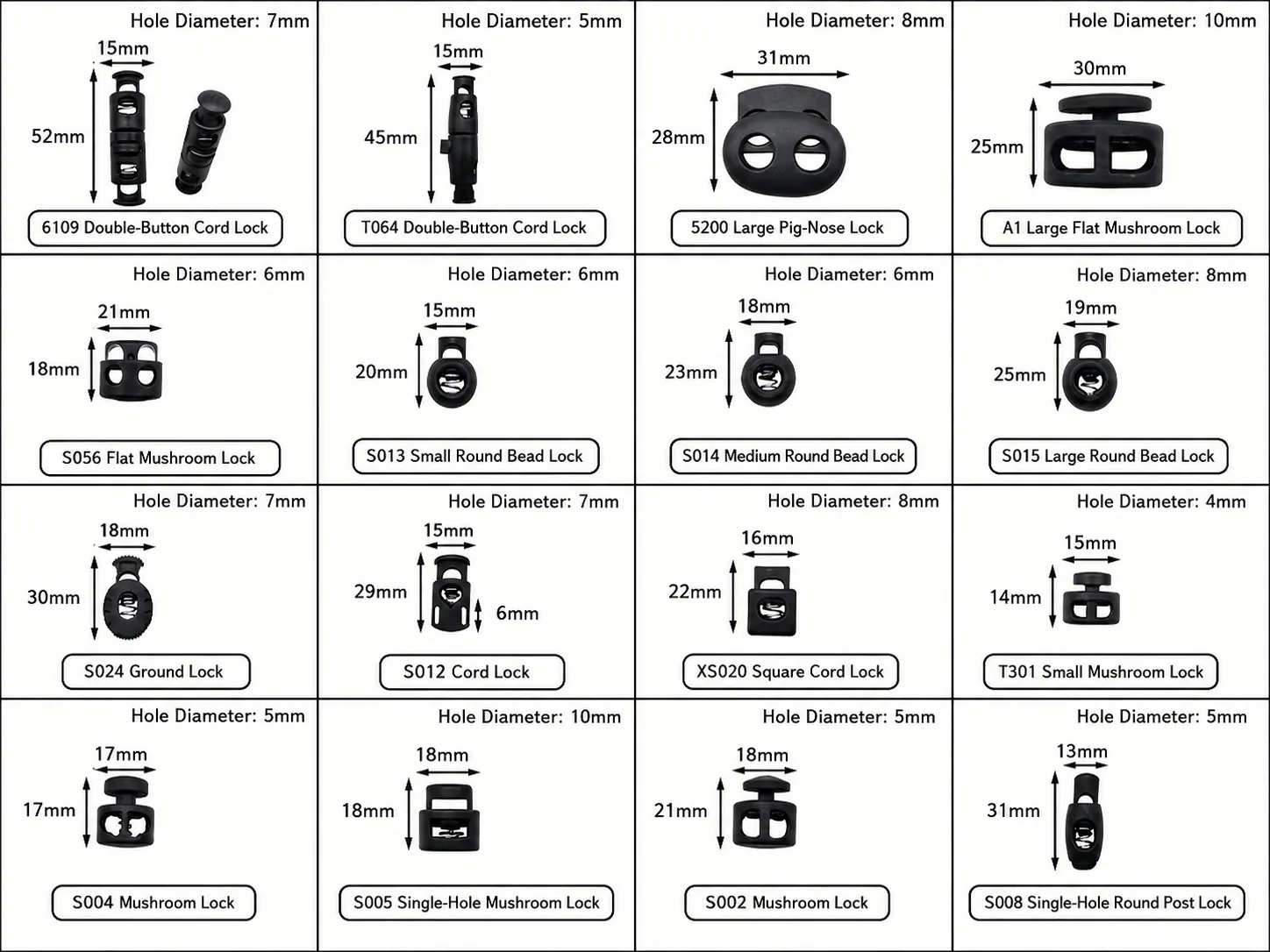

Button locks, bead locks and special mushroom variants
Expanded board including 6109 and T064 double-button cord locks, 5200 pig-nose, A1 large flat mushroom lock, S056 flat mushroom, S013/S014/S015 round bead locks, XS020 square cord lock, T301 small mushroom and single-hole post-lock variants.
Mushroom & pig-nose cord stopper families
These large sheets compare the most requested mushroom and pig-nose body styles, including black stock versions and white POM options.

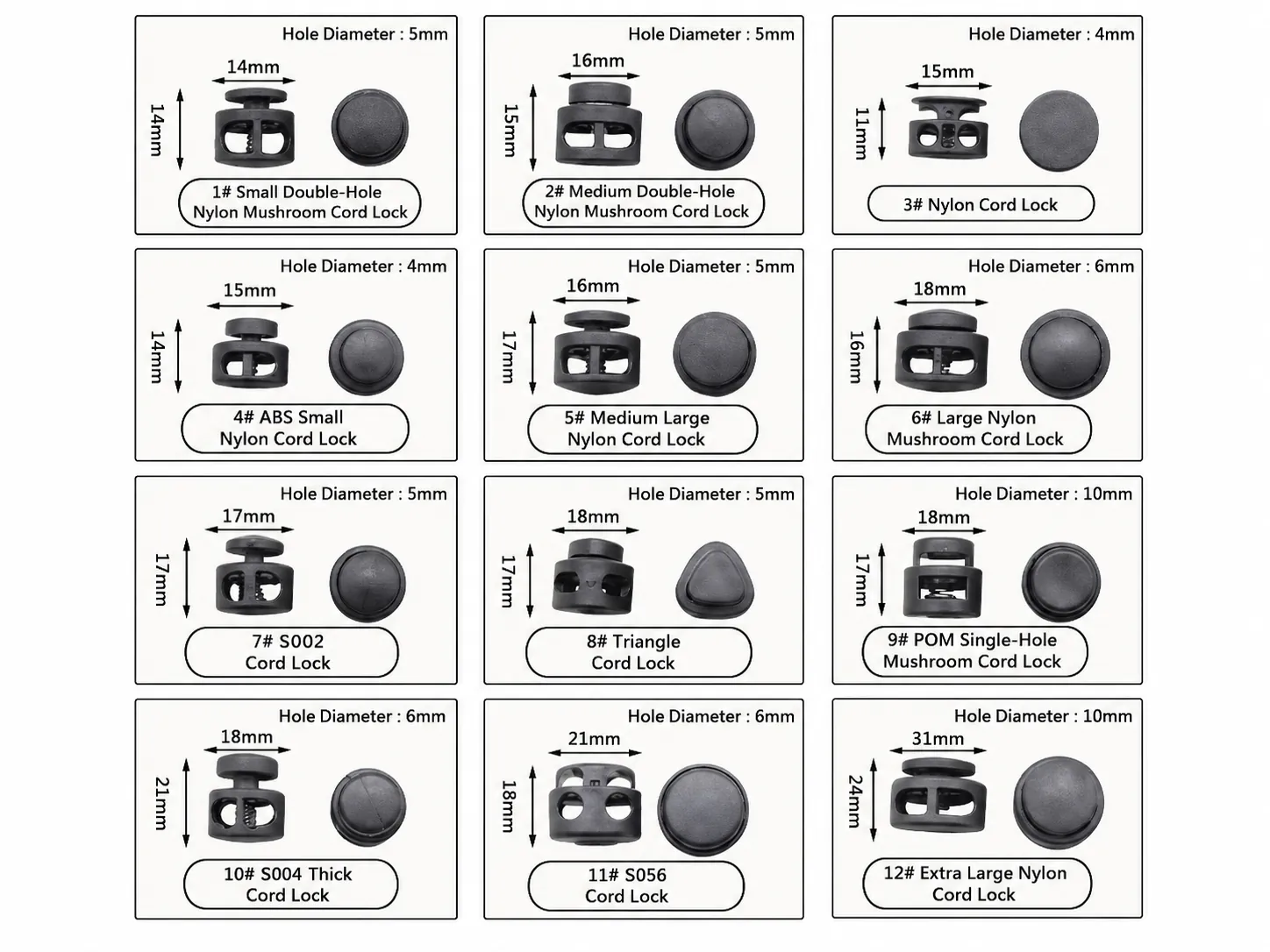

Nylon mushroom cord lock size board
A complete mushroom-lock family chart covering 1# through 12# nylon cord lock variants, including small, medium, large, triangle and extra-large constructions for different cord diameters.

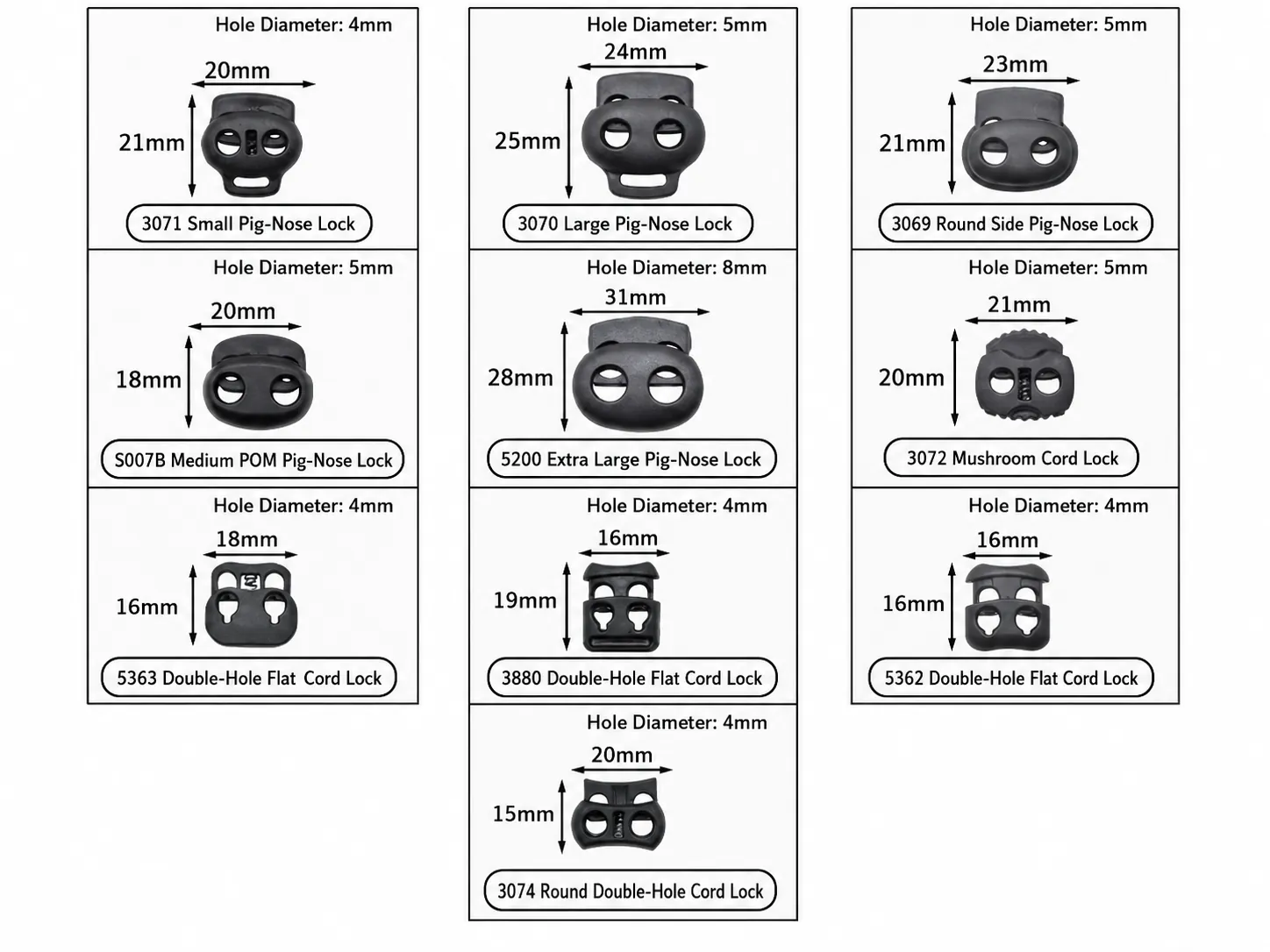

Pig-nose and flat double-hole range
Focused board featuring 3071 Small Pig-Nose Lock, 3070 Large Pig-Nose Lock, 3069 Round Side Pig-Nose Lock, S007B Medium POM Pig-Nose Lock, 5200 Extra Large Pig-Nose Lock, 3072 Mushroom Cord Lock and the 5363 / 3880 / 5362 flat double-hole family.

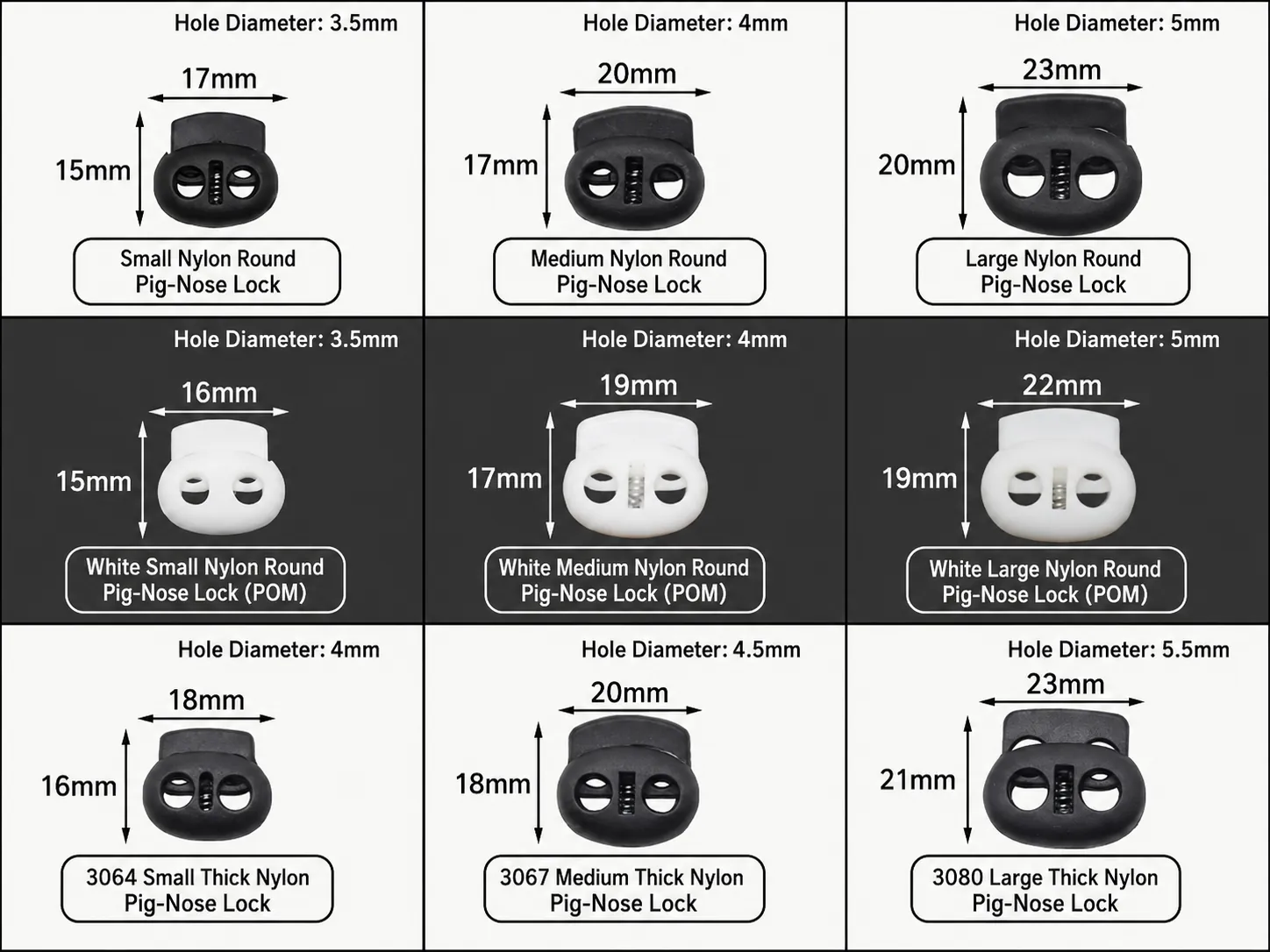

Pig-nose size comparison in black and white POM
Comparison board showing small, medium and large nylon round pig-nose locks together with white POM versions, plus models 3064, 3067 and 3080 for thickness comparison.
Assembled drawcord stopper units
For customers who need ready-to-use stopper assemblies, we can supply assembled locks with cord and finished cord ends.

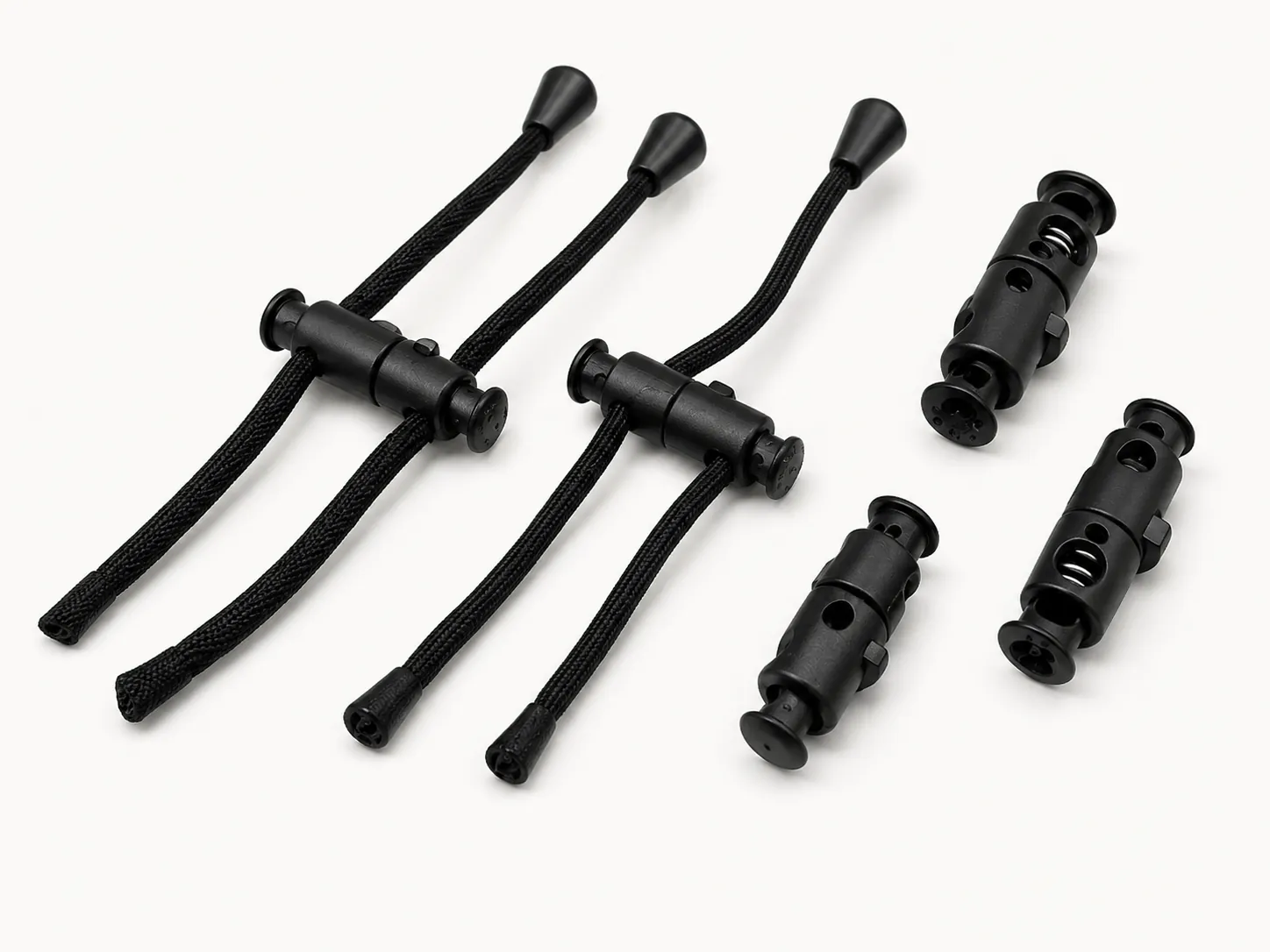

Functional assembled stopper samples
Large direct photo showing assembled black stopper units with cords and cord ends. Ideal for reference when discussing ready-to-use hoodie drawcord assemblies, technical packs or OEM development.
Specifications at a glance
| Attribute | Specification |
|---|---|
| Type families | Single-hole cord locks, double-hole cord locks, pig-nose locks, mushroom cord locks, button locks, bead locks, special buckles and assembled stopper units |
| Materials | POM / acetal, nylon, ABS and other engineering plastics depending on the application |
| Hole diameter | Approx. 3.5 mm to 10 mm across the uploaded range |
| Size range | Compact 15 mm styles up to extra-large 52 mm technical lock constructions |
| Color options | Black is the common stock color; white and custom Pantone-style colors supported for OEM orders |
| OEM options | Custom color, custom mold, logo tooling, cord assembly, matched cord-end combinations and packaging |
| MOQ | Usually 1,000–5,000 pcs per style/color depending on mold and stock status; assembled programs quoted separately |
| Lead time | Samples 3–7 days · bulk production typically 10–18 days |
| Applications | Hoodies, jackets, sportswear, bags, backpacks, luggage, outdoor garments, rainwear and drawstring packaging |
Frequently asked questions
What is the difference between pig-nose, mushroom and round cord locks?
Pig-nose locks usually have a wider oval face and are popular on hoodies and bags. Mushroom locks have a flatter button-like top and can feel more compact. Round or cylindrical cord locks are common for clean functional drawcord adjustment on jackets and outdoor wear.
Can you recommend a model based on our cord diameter?
Yes. Send the cord diameter, finished product photo or tech pack and we can suggest suitable models from the sheets above. Most boards already indicate the supported hole diameter, which makes style screening faster.
Do you offer custom colors and white versions?
Yes. Black is the most common stock color, but white POM and custom colored production are available subject to MOQ and material choice.
Can you assemble the cord stopper together with cord and end tips?
Yes. We can quote assembled programs that combine the stopper, braided cord and cord-end finishing, similar to the assembled sample image shown on this page.
What information should I send for a cord stopper quote?
Please send the preferred model or a marked image from this page, cord diameter, color, material preference, quantity and whether you need loose parts or assembled drawcord units.
